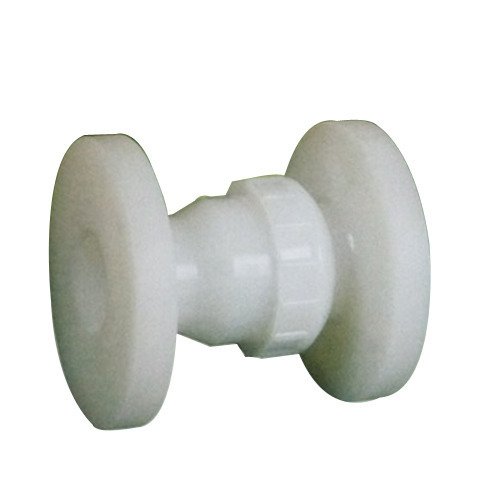

PP Non Return Valve

Offered in different specifications, our PP non return valves flange ends are made using high quality PP, PVDF material and neoprene rubber. Known for their stress tolerance and surface hardness, these are designed in compliance with ANSI, BS and DIN standards.

Technical Specification:
Construction Ball type, soft seated
Standard As per manufacturer’s
Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
M.O.C. Available

  • PP (Polypropylene)
  • PVDF (Polyvinylidene Fluoride)

Size
Inch mm OD ID H T
1 25 120 33.5 176 16
1 1/2 40 136 39 210 20.5
2 50 160 51 217 21
2 1/2 65 181 62.5 313 21
3 80 199 74.5 313 21
4 100 228 100 356 26
6 150 300 150 475 30
No. Description Material Qty.
P1 Top Body PP/PVDF 1
P2 Bottom Body PP/PVDF 1
P3 Screen PP/PVDF 1
P4 Ball M.S. PP / PVDF Coated 1
P5 Ball Ring PP/PVDF 1
P6 Seat Ring Neoprene Rubber 1
