FORGED FITTINGS

Swaged Nippolets

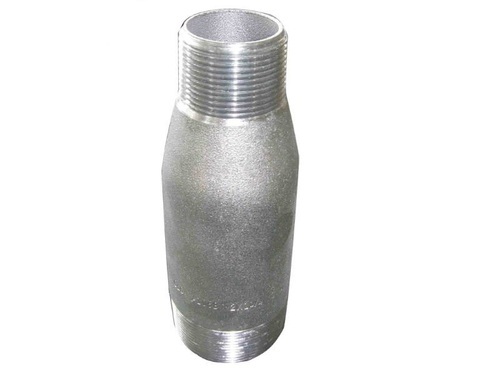

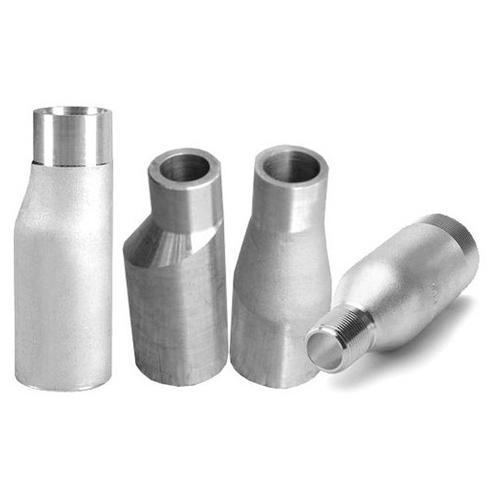

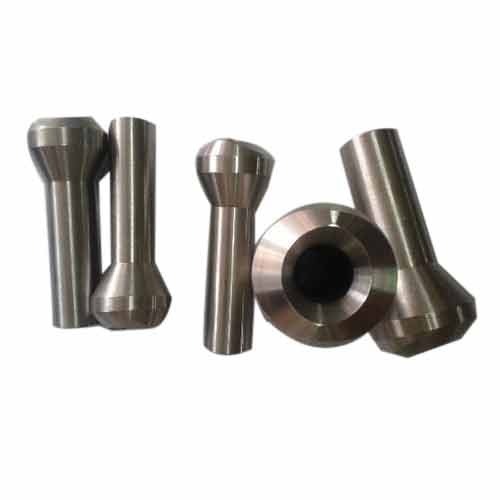

We supply Swaged Nippolets (3000 #) made of superior quality Stainless Steel. The Steel Swaged Nippolets offer optimum performance, durability and abrasion resistant. We have Stainless Steel Swaged Nippolets in various shapes and sizes to supply for diverse industrial applications.

Description

Nickel Alloy

ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ), UNS 4400 (MONEL 400 ), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ) ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )

Copper Alloy

ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600.
ASTM / ASME SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.

Stainless Steel

ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.

Duplex Steel

ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.

Carbon Steel

ASTM / ASME A 105.
ASTM / ASME A 350 LF 2.

Alloy Steel

ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.

Category: FORGED FITTINGS
