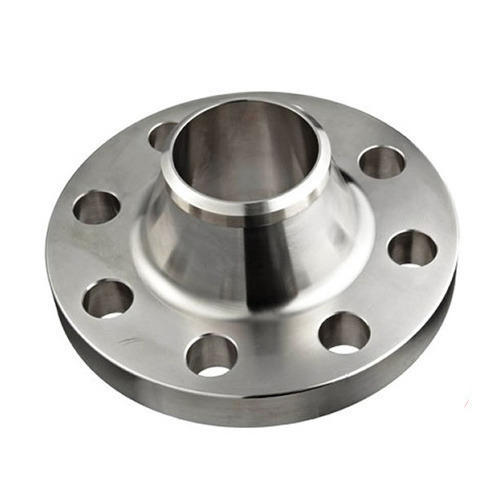

Welded Flanges

We are widely known for manufacturing and supplying a wide range of high quality Welded Flanges. These flanges are welded to the end of pipe so that the pipe can be bolted to another pipe with a similar flange. Complying with the defined parameters of the industry, these offered welded flanges hold several attributes such as

  • Epoxy Coating
  • Longer service life
  • Hot Dip Galvanizing
  • Resistance against corrosion
  • Dimensions stability
  • Compressive strength

Size
1/2″NB TO 60″NB IN

Class
150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND-6,10, 16, 25, 40 Etc.

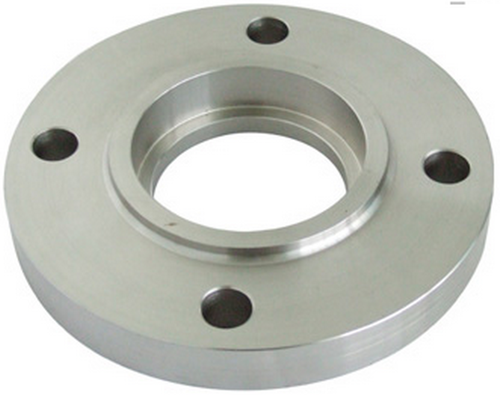

Nickel Alloy Socket Weld Flange
ASTM / ASME SB 564 / 160 / 472.
UNS 10276 -HASTELLOY C 276 Socket Weld Flange
UNS 2200 -NICKEL 200 Socket Weld Flange
UNS 2201 -NICKEL 201 Socket Weld Flange
UNS 4400 -MONEL 400 Socket Weld Flange
UNS 8020 -ALLOY 20 Socket Weld Flange
UNS 8825 -INCONEL 825 Socket Weld Flange
UNS 6600 -INCONEL 600 Socket Weld Flange
UNS 6601 -INCONEL 601 Socket Weld Flange
UNS 6625 -INCONEL 625 Socket Weld Flange

Copper Alloy Socket Weld Flange
ASTM / ASME SB 61 / 62 / 151 / 152.
C 70600 (CU -NI- 90/10) ? Cupro Nickel Socket Weld Flange
C 71500 (CU -NI- 70/30) ? Copper Nickel Socket Weld Flange
UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100,
C 10200, C 10300, C 10800, C 12000, C 12200

Duplex Steel Socket Weld Flange
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

Stainless Steel Socket Weld Flange ? SS SWRF Flange
ASTM A182 Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

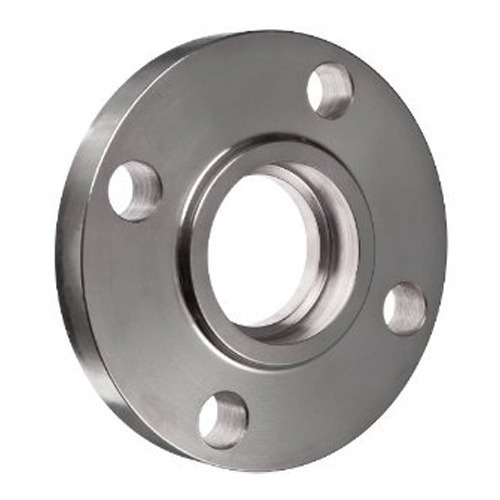

Alloy Steel Socket Weld Flange ? AS SWRF Flange
ASTM SA 182 F1/F5/F9/F11/F22/F91

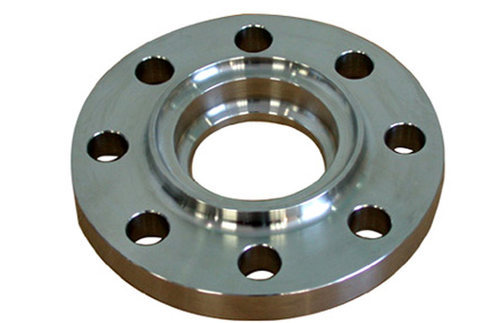

Carbon Steel Socket Weld Flange ? CS SWRF Flange
ASTMA 105 Gr. F42/46/52/56/60/65/70

Low Temperature Carbon Steel Socket Weld Flange ? LTCS SWRF Flange
A350 LF2/A350 LF3
Value Added Services
Hot Dip Galvanizing
Epoxy Coating,
Test Certificate
Mill Test Certificate as per EN 10204 / 3.1B
